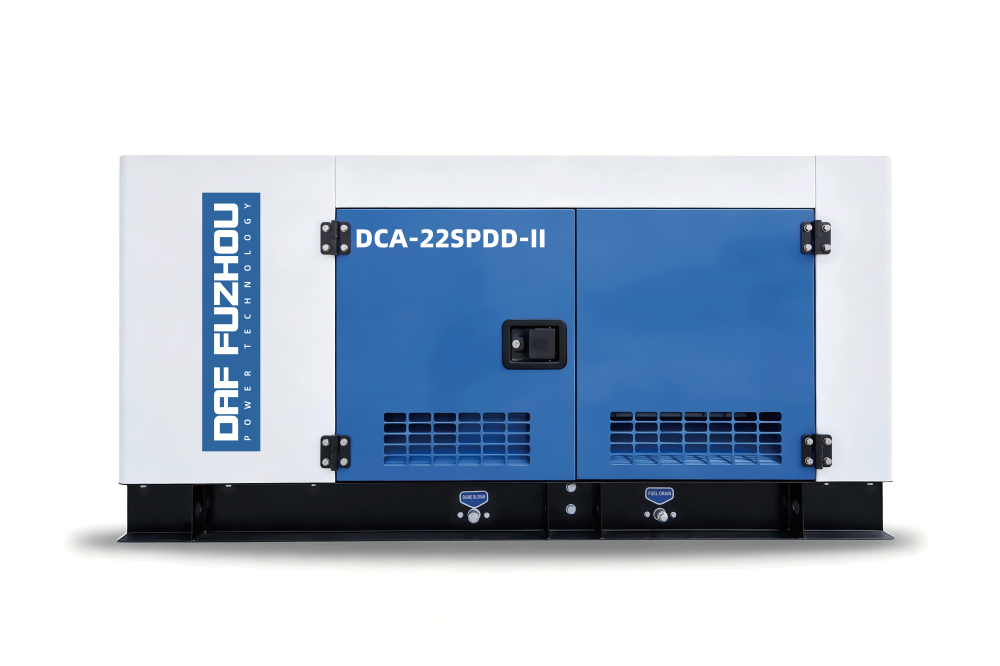

DAF DCA-22SPDD-II Silent Diesel Generator

DAF DCA-22SPDD-II Silent Diesel Generator

20 kVA prime / 22 kVA standby silent diesel generator, 60 Hz, 380/220 V, three phase.
  • Warranty: 12 months or 1,000 operating hours, whichever comes first.
  • Factory testing: Every generator set is 100% load-tested before delivery.

Electrical system: ATS, industrial outlet socket, controller Engine: Jacket water pre-heater Alternator: Anti-condensation heater Fuel system: Fuel / water separator

Engineer Your PowerDownload Product Manual

Product Description

DCA-22SPDD-II is a silent diesel generator set for reliable industrial, commercial and project power applications.

Technical specifications

  • Prime output: 16 kW / 20 kVA
  • Standby output: 17.6 kW / 22 kVA
  • Rated voltage: 380/220 V
  • Frequency: 60 Hz
  • Phase: Three phase
  • Engine: Diesel DSR-4B12
  • Alternator: DSR-16-3
  • Dimensions: 1550 × 740 × 850 mm
  • Weight: 560 kg

Standard equipment includes a heavy-duty diesel engine, brushless alternator with AVR, anti-vibration mountings, starter battery, industrial silencer, filters, output breaker, steel base frame, controller, factory test certificate and operation manual.

Warranty: 1 year or 1,000 operating hours from delivery, whichever comes first, subject to the manufacturer’s warranty conditions.

Product Features

01

High Performance

02

Custom Design

03

Convenient Travel

Product Specifications

Power & Electrical

Frequency
60Hz
Phase
Three phase
Rated Voltage
380/220 V
Power Factor
0.8
Prime Power
16 kW / 20 kVA
Standby Power
17.6 kW / 22 kVA
Rated Speed
1800 RPM

Engine & Alternator

Fuel Type
Diesel
Engine Brand
Diesel
Engine Model
DSR-4B12
Alternator Model
DSR-16-3

Dimensions & Consumption

Dimensions (L × W × H)
1550 mm × 740 mm × 850 mm
Dry Weight
560 kg
Fuel Tank Capacity
42 L
Fuel Consumption
4.9 L/h
