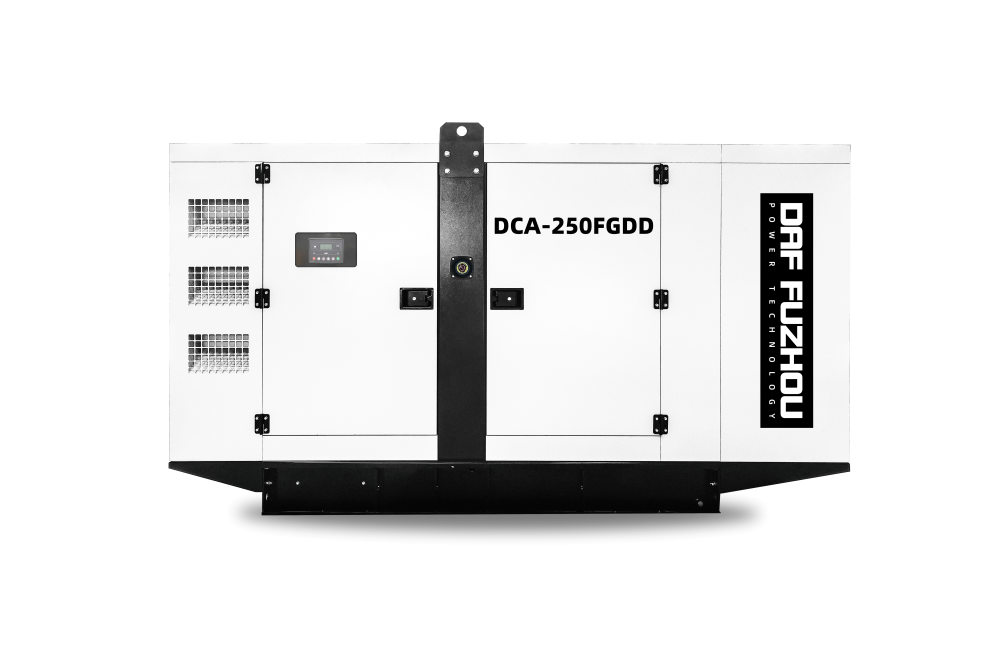

DAF DCA-250FGDD Silent Diesel Generator

DAF DCA-250FGDD Silent Diesel Generator

200 kVA prime / 220 kVA standby silent diesel generator, 50 Hz, 400/230 V, three phase.
  • Warranty: 12 months or 1,000 operating hours, whichever comes first.
  • Factory testing: Every generator set is 100% load-tested before delivery.

Electrical system: ATS, industrial outlet socket, controller Engine: Jacket water pre-heater Alternator: Anti-condensation heater Fuel system: Fuel / water separator

Engineer Your PowerDownload Product Manual

Product Description

DCA-250FGDD is a silent diesel generator set for reliable industrial, commercial and project power applications.

Technical specifications

  • Prime output: 160 kW / 200 kVA
  • Standby output: 176 kW / 220 kVA
  • Rated voltage: 400/230 V
  • Frequency: 50 Hz
  • Phase: Three phase
  • Engine: Cummins 6CTAA8.3-G2
  • Alternator: DSR274J
  • Dimensions: 3380 × 1100 × 1900 mm
  • Weight: 2500 kg

Standard equipment includes a heavy-duty diesel engine, brushless alternator with AVR, anti-vibration mountings, starter battery, industrial silencer, filters, output breaker, steel base frame, controller, factory test certificate and operation manual.

Warranty: 1 year or 1,000 operating hours from delivery, whichever comes first, subject to the manufacturer’s warranty conditions.

Product Features

01

High Performance

02

Custom Design

03

Convenient Travel

Product Specifications

Power & Electrical

Frequency
50Hz
Phase
Three phase
Rated Voltage
400/230 V
Power Factor
0.8
Prime Power
160 kW / 200 kVA
Standby Power
176 kW / 220 kVA
Rated Speed
1500 RPM

Engine & Alternator

Fuel Type
Diesel
Engine Brand
Cummins
Engine Model
6CTAA8.3-G2
Alternator Model
DSR274J

Dimensions & Consumption

Dimensions (L × W × H)
3380 mm × 1100 mm × 1900 mm
Dry Weight
2500 kg
Fuel Tank Capacity
369 L
Fuel Consumption
45 L/h
