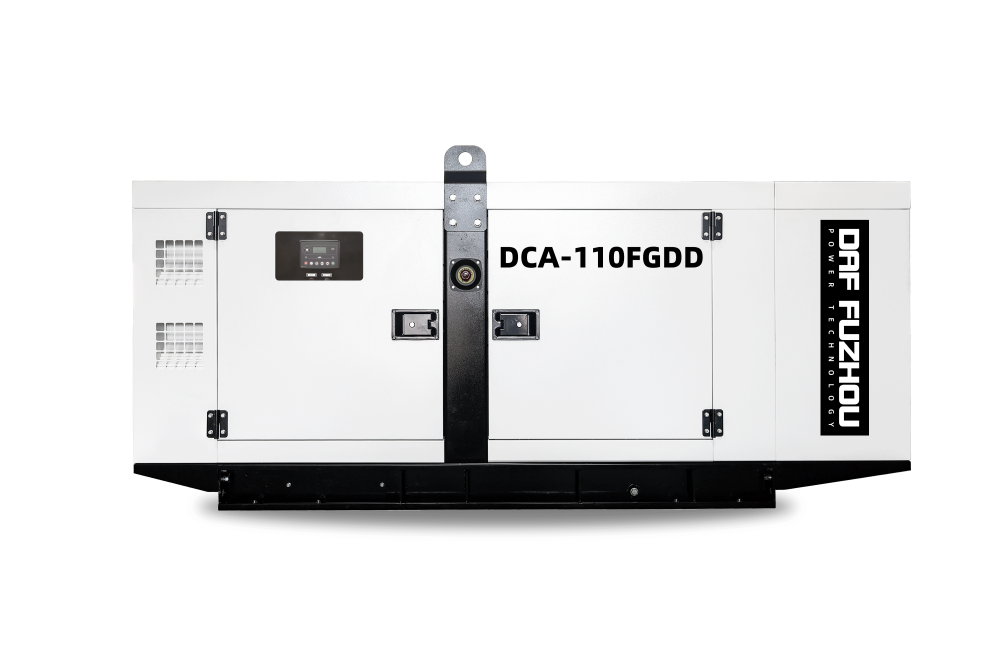

DAF DCA-110FGDD Silent Diesel Generator

DAF DCA-110FGDD Silent Diesel Generator

100 kVA prime / 110 kVA standby silent diesel generator, 50 Hz, 400/230 V, three phase.
  • Warranty: 12 months or 1,000 operating hours, whichever comes first.
  • Factory testing: Every generator set is 100% load-tested before delivery.

Electrical system: ATS, industrial outlet socket, controller Engine: Jacket water pre-heater Alternator: Anti-condensation heater Fuel system: Fuel / water separator

Engineer Your PowerDownload Product Manual

Product Description

DCA-110FGDD is a silent diesel generator set for reliable industrial, commercial and project power applications.

Technical specifications

  • Prime output: 80 kW / 100 kVA
  • Standby output: 88 kW / 110 kVA
  • Rated voltage: 400/230 V
  • Frequency: 50 Hz
  • Phase: Three phase
  • Engine: Cummins 6BT5.9-G2
  • Alternator: DSR274C
  • Dimensions: 2850 × 1050 × 1500 mm
  • Weight: 1388 kg

Standard equipment includes a heavy-duty diesel engine, brushless alternator with AVR, anti-vibration mountings, starter battery, industrial silencer, filters, output breaker, steel base frame, controller, factory test certificate and operation manual.

Warranty: 1 year or 1,000 operating hours from delivery, whichever comes first, subject to the manufacturer’s warranty conditions.

Product Features

01

High Performance

02

Custom Design

03

Convenient Travel

Product Specifications

Power & Electrical

Frequency
50Hz
Phase
Three phase
Rated Voltage
400/230 V
Power Factor
0.8
Prime Power
80 kW / 100 kVA
Standby Power
88 kW / 110 kVA
Rated Speed
1500 RPM

Engine & Alternator

Fuel Type
Diesel
Engine Brand
Cummins
Engine Model
6BT5.9-G2
Alternator Model
DSR274C

Dimensions & Consumption

Dimensions (L × W × H)
2850 mm × 1050 mm × 1500 mm
Dry Weight
1388 kg
Fuel Tank Capacity
120 L
Fuel Consumption
22.1 L/h
